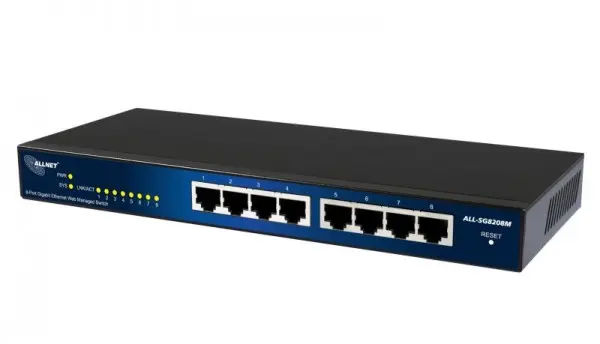

ALLNET Switch smart managed 8 Port Gigabit - ALL-SG8208M

ALLNET Switch smart managed 8 Port Gigabit - ALL-SG8208M

https://mein.netbits.at/web/image/product.template/716/image_1920?unique=abdb2ef
(0 Rezension)


  • Anzahl Ports PoE/LAN: 0/8
  • Belüftung Switch: Lüfterlos
  • Einsatzort Switch: Desktop
  • LAN Geschwindigkeit: 1Gbit/S
  • Management: smart managed (WebGui)


78,00 € 78.0 EUR 78,00 € Inklusive Steuern

65,00 € Inklusive Steuern

Not Available For Sale

(0,00 € / Einheit(en))

Diese Kombination existiert nicht.

Kontaktieren Sie uns
Switch Allnet

Teilen



Details


  • Switch-Arbeitsweise: Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation
  • Switch-Typ: standalone
  • Switching-Ports: 8x RJ45 10/100/1000BaseT(X)
  • Uplink: Auf allen Ports möglich (Auto MDI/MDI-X)
  • Kaskadierbar: Uplink
  • Full Duplex Mode: Ja
  • Datendurchsatz: Leitungsgeschwindigkeit
  • Buffer Memory: 524,8K Bytes
  • Jumbo Frame: 10K Bytes
  • Switch Fabric: 16Gbps
  • Adressen-Management: Selbstlernend
  • Adressentabelle MAC: 8K
  • Filtering/Forwarding: Leitungsgeschwindigkeit
  • LED-Anzeigen: Power, Link, Activity
  • Stromversorgung: externes Netzteil
  • Unterstützte Standards: IEEE802.3 10BaseT, IEEE802.3u 100BaseTX, IEEE802.ab 1000BaseT, IEEE802.1az Energy Efficient Enternet, IEEE802.1p class of service, priority protocols
  • Layer2 Funktionen: Flow Control (Full-Duplex & Half-Duplex), Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection), VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based), Voice VLAN (OUI Mode), Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing), IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3, IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
  • QoS Features: 8 Priority Queue, Rate Limit (Port Based Ingress/Egress), Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid), Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)
  • Security: Storm Control (Broadcast, Unknown Multicast, Unknown Unicast), HTTPS und SSL 2.0, Account Manager (Multiple Account, Multi-Level Security), Management VLAN, Port-Isolation, DoS Prevention
  • IPv6: IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6), IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)
  • Management: Web-GUI (HTTP,HTTPS), Command Line Interface CLI ( Console, RFC854), SNMP (v1/v2c), File Managment (Firmware Upgrade, Configuration Download, DHCP Client, DNS Client, Mirroring (Port-based "many to one"), Syslog (RFC3164, LocalRAM, Local Flash, Remote Server), Time Setting (Local, SNTP), Cable Diagnostics (Cable Test), Port Utiliation, Reset Button, EEE (802.3az)
  • Gehäuse: Desktop-Metallgehäuse
  • Breite/Tiefe/Höhe: 250 x 104 x 27 mm
  • Umgebung: Temperatur Betrieb: 0 ~ 55 °C, Luftfeuchtigkeit Betrieb: 10% ~ 90%, Temperatur Aufbewahrung: -20 ~ 90 °C, Luftfeuchtigkeit Aufbewahrung: 5% ~ 90%
  • Kennzeichnung: EMC/FCC, CE Class B; Safety/LVD EN60950-1
